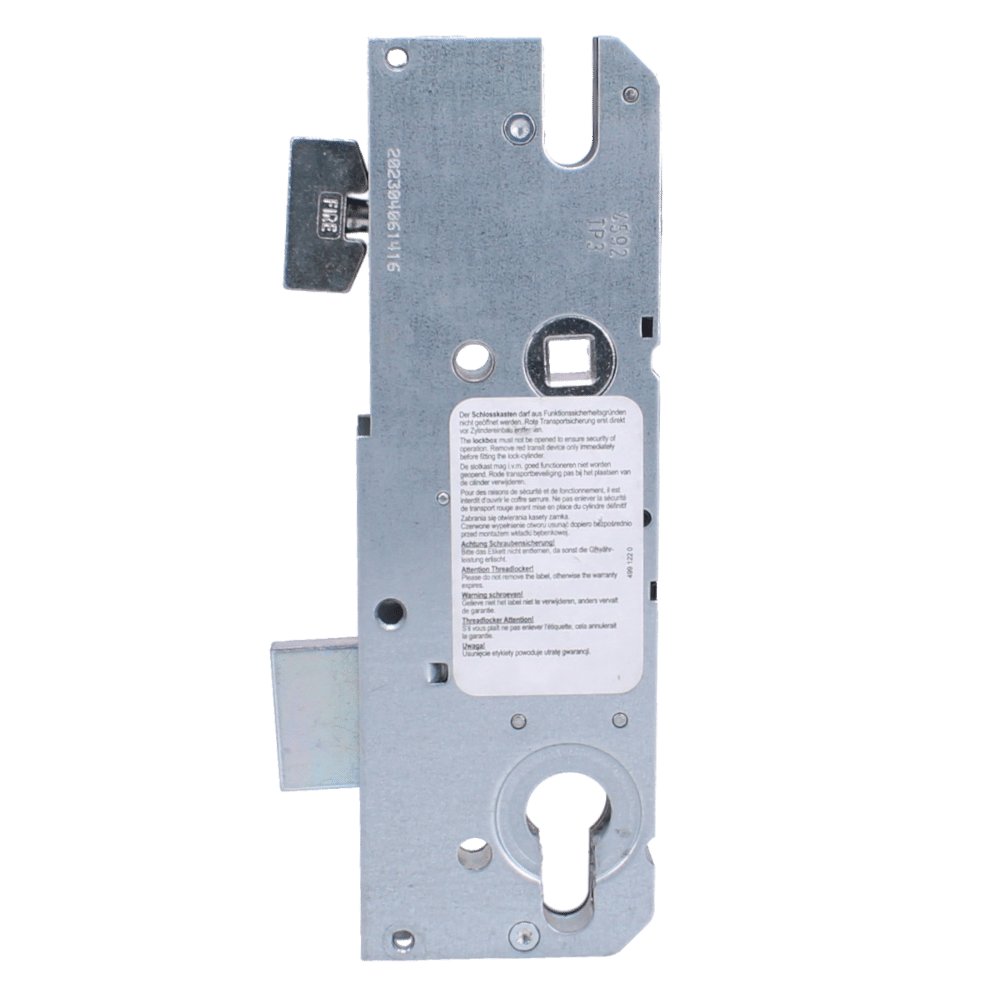

WINKHAUS Keywind Gearbox – 45mm Backset

Description

The WINKHAUS Keywind Gearbox has 45mm backset, latch & deadbolt centre case, 92mm centres, 185mm case height and has 47mm case width. These units are handed, please refer to the handing diagram to ensure that you order the correct product for your application. Winkhaus gearboxes are fixed to the faceplate using rivets rather than screws. This allows the rivets to be removed and replaced when carrying out a gearbox swap, while also making Winkhaus products easy to identify. Ideal for locksmiths and trade professionals, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip. IdentificationWinkhaus gearboxes are fixed to the faceplate using rivets rather than screws. HandingThe latch can be reversed by placing a screwdriver in the rear of the case directly behind the latch. Push the latch forward and rotate it to the opposite hand. OperationLocking Method – C. Two full turns of the key to lock and then two full turns of the key to unlock. An extra turn withdraws the latch.
