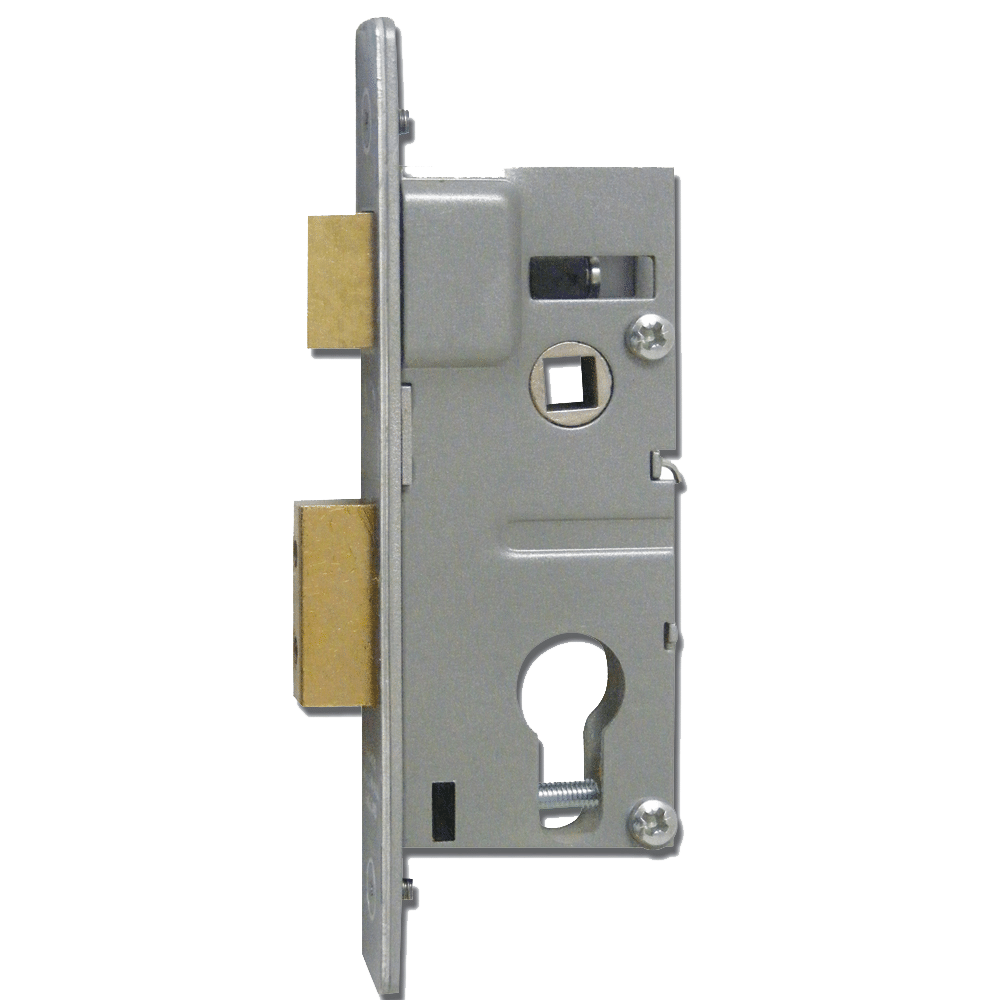

UNION L2224 Euro Sashcase – 50mm SC Bagged

Description

The UNION L2224 Euro Sashcase has 30.5mm backset, 48mm centres, is single spindle, latch & deadbolt centre case, 108mm case height, 47mm case width, 50mm case depth and has 22mm faceplate width. It is supplied with a strike only with no fixings, can be used with unsprung lever handles and is usually installed on aluminium doors. HandingThe latch can be reversed by removing the screw in the rear of the latch through the back of the case, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – Sash 1. Standard sashlock operation with the deadbolt operated by the cylinder and the latchbolt operated by the handle.
