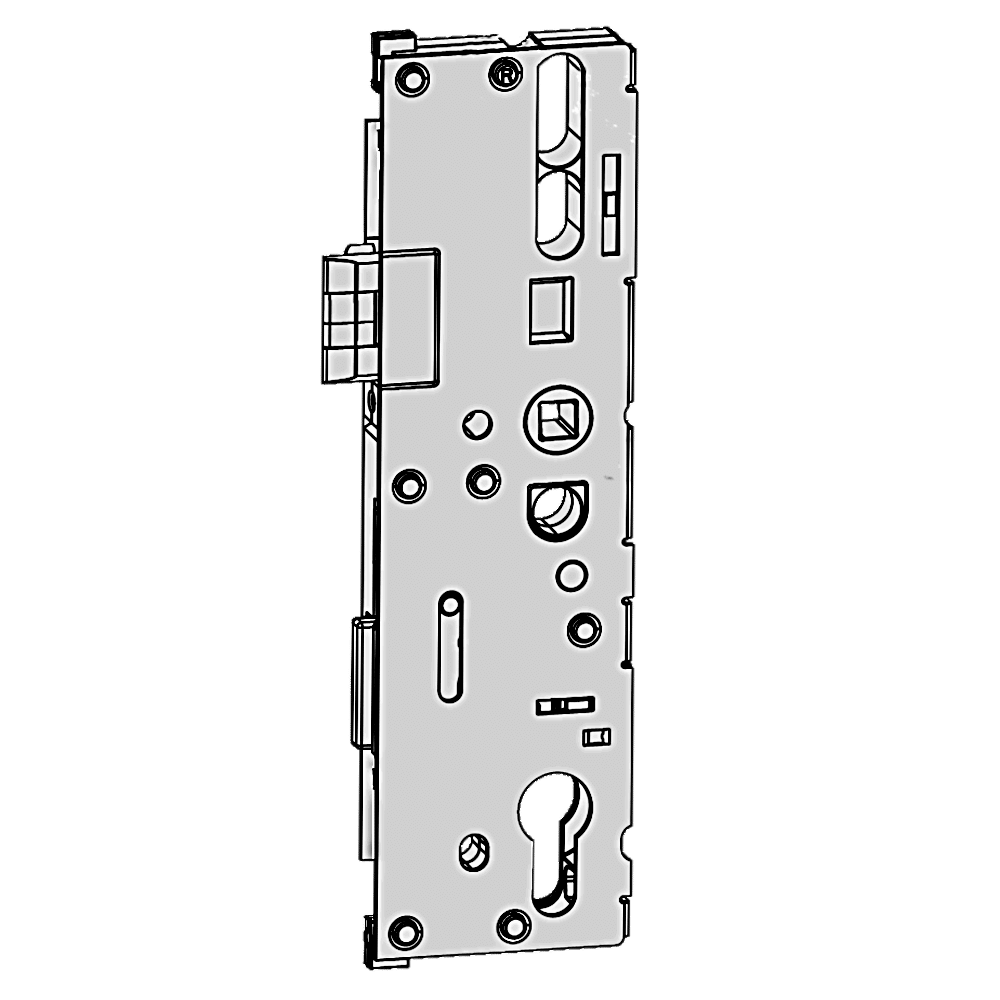

ROTO H650/H600 Gearbox Only 92mm Centres – 55mm Backset

Description

The ROTO H650/H600 Gearbox Only 92mm Centres has 25mm or 28mm or 35mm or 40mm or 45mm or 50mm or 55mm backset, 92mm centres, is single spindle, latch & deadbolt centre case, 213mm case height and has 43mm or 46mm or 53mm or 58mm or 63mm or 68mm or 73mm case width. This Roto single spindle gearbox is to suit the H650 and H600 range of multipoint locks. The case depth can be calculated by adding 15mm to the backset. HandingThe latch can be reversed by inserting an Allen key above the latch on the faceplate and pushing the locking pin upwards. This then enables you to remove the latch and flip it to the opposite hand. Please ensure that the latch fully clicks back into position upon refitting. OperationLocking Method – A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
