MACO Lever Operated Push Button Latch Release GTS Gearbox – 35/92

Description

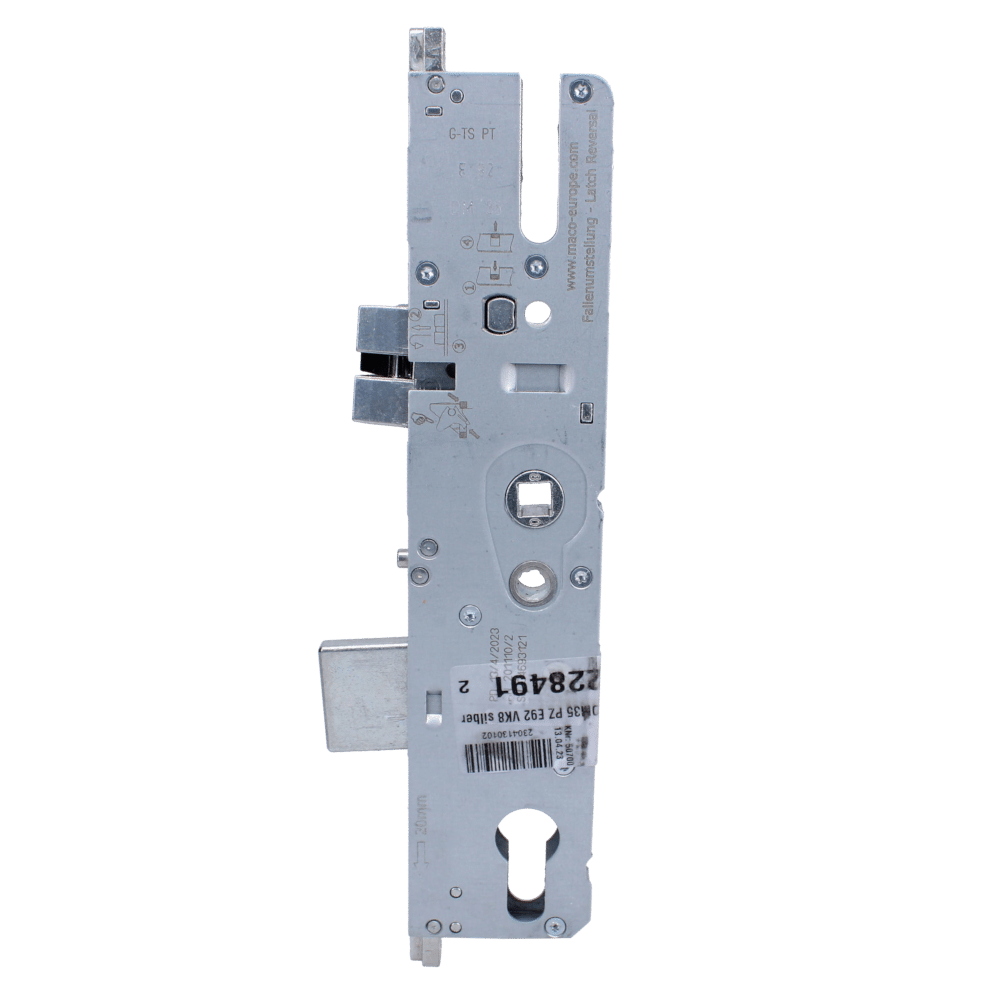

The MACO Lever Operated Push Button Latch Release 35/92 GTS Gearbox has 28mm, 35mm or 45mm backset, 92mm centres, is single spindle, latch & deadbolt centre case, 226mm case height and has 45mm or 52mm or 62mm case width. Ideal for locksmiths and trade professionals, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip. HandingThe latch can be reversed by pushing in the latch hold cam (located on the side of the lockcase). Remove the latch, reverse it, and return it to the case. You should hear a click as it engages. OperationLocking Method – A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
