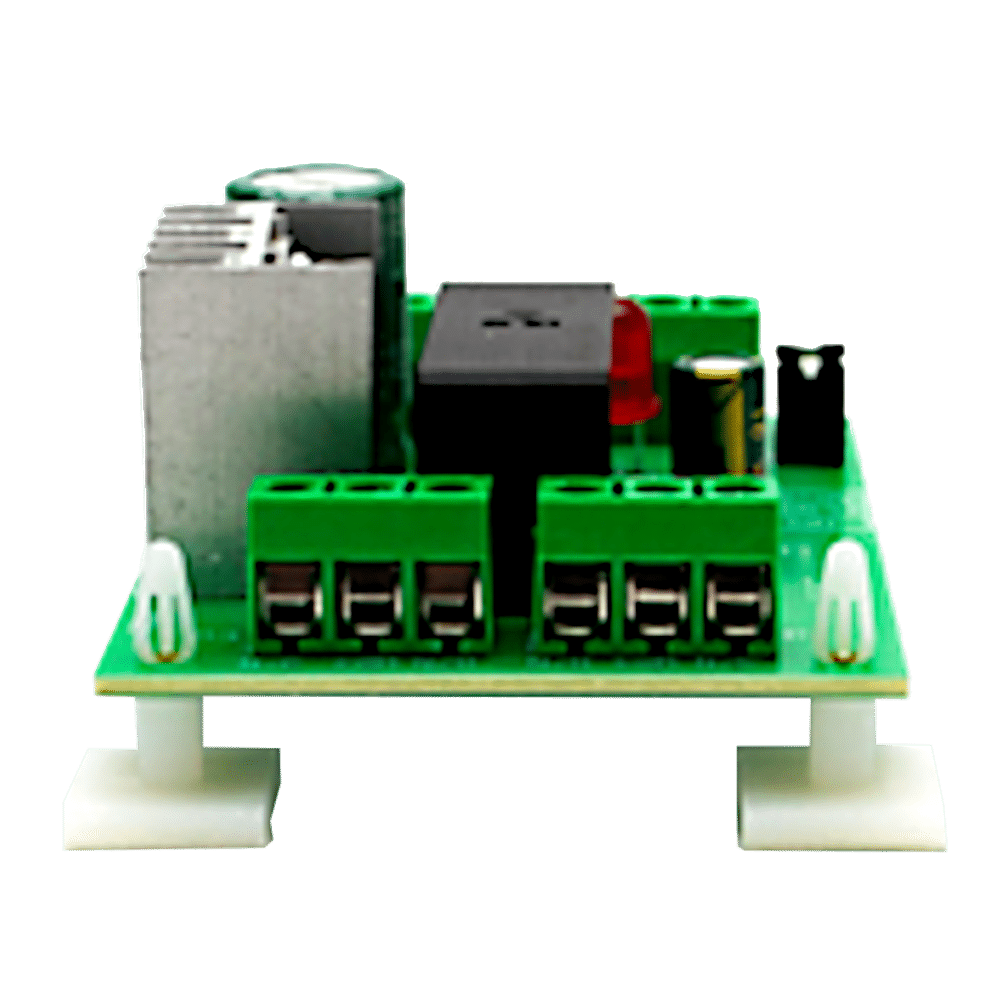

HAYDON MARKETING 12V DC Multi Purpose Relay – MPRACDC-8A
£20.48
- Works on AC or DC
- LED indication when relay energized
- No jumper links to select voltage
- Not polarity conscious
- Triggered by power supply/high signal/low signal
- Nominal Current:24 mA
- Interface P1: 9- 30VAC / DC10.5 – 36 VDC input
- Interface P2/P3: Dry contact / voltage free switching Output
15 in stock
Description
This AC/DC universal relay will work on 9-30VAC / DC10.5-36 VDC, and is a simple to fit module wherever a dry contact, voltage free switching is required or where there is a need for higher than usual currents and voltages to be switched. The double pole double throw relay, rated at 8 Amps, can be activated by power supply/high signal/low signal to switch two outputs at same time.
Additional information
| Weight | 0.1 kg |
|---|---|
| Depth | |
| Height | |
| Manufacturer Reference | |
| Notes | |
| Pack Quantity | |
| Packaging | |
| Relay Rating | Double pole relay rated at: 8 Amps at 240 V AC or 8 Amps at 30 V DC |
| Weight | |
| Width |
