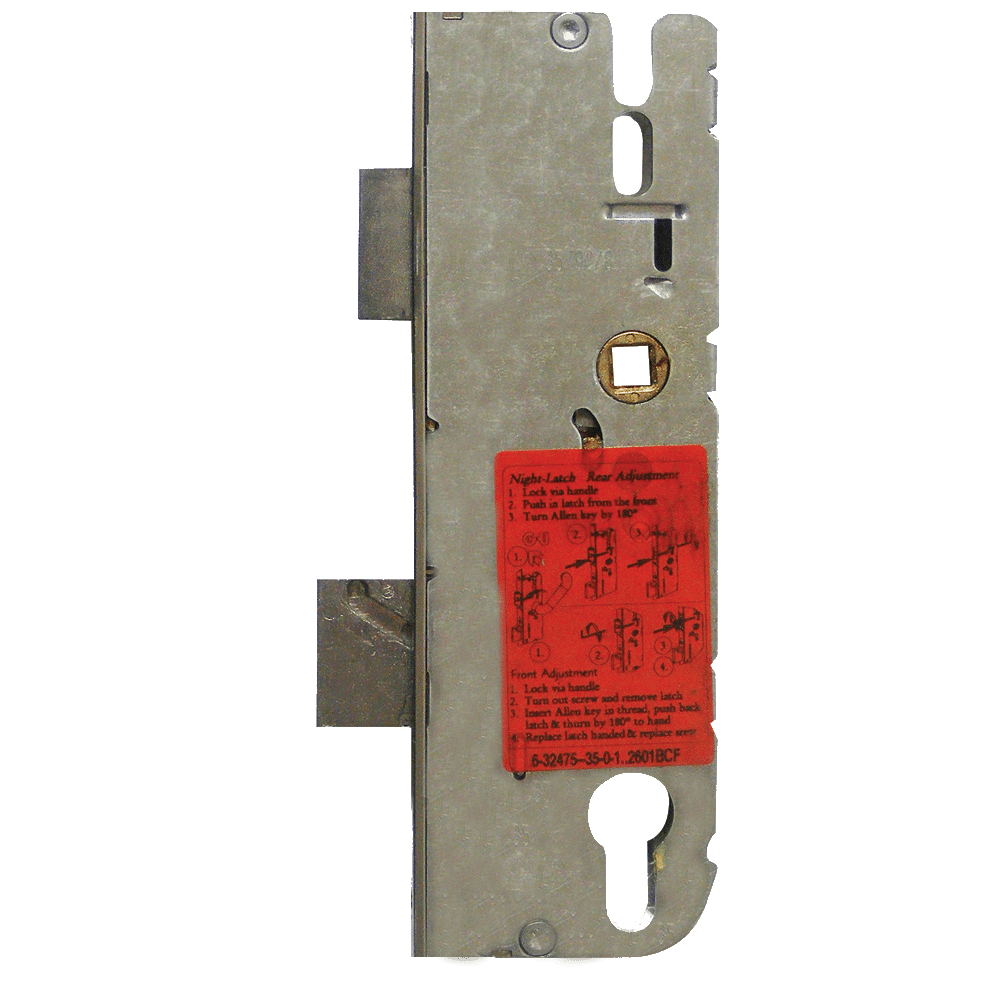

GU Lever Operated Latch & Deadbolt Gearbox with Split Spindle – 45/92

Description

The GU Lever Operated Latch & Deadbolt Gearbox with Split Spindle has a 35mm or 45mm backset with 92mm centres. It is a split spindle latch and deadbolt centre case with a 195mm case height and a 53mm or 63mm case width. This GU lever operated latch and deadbolt gearbox with split spindle is a cost effective repair solution for common lock failures where the existing locking strip remains in working condition. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
