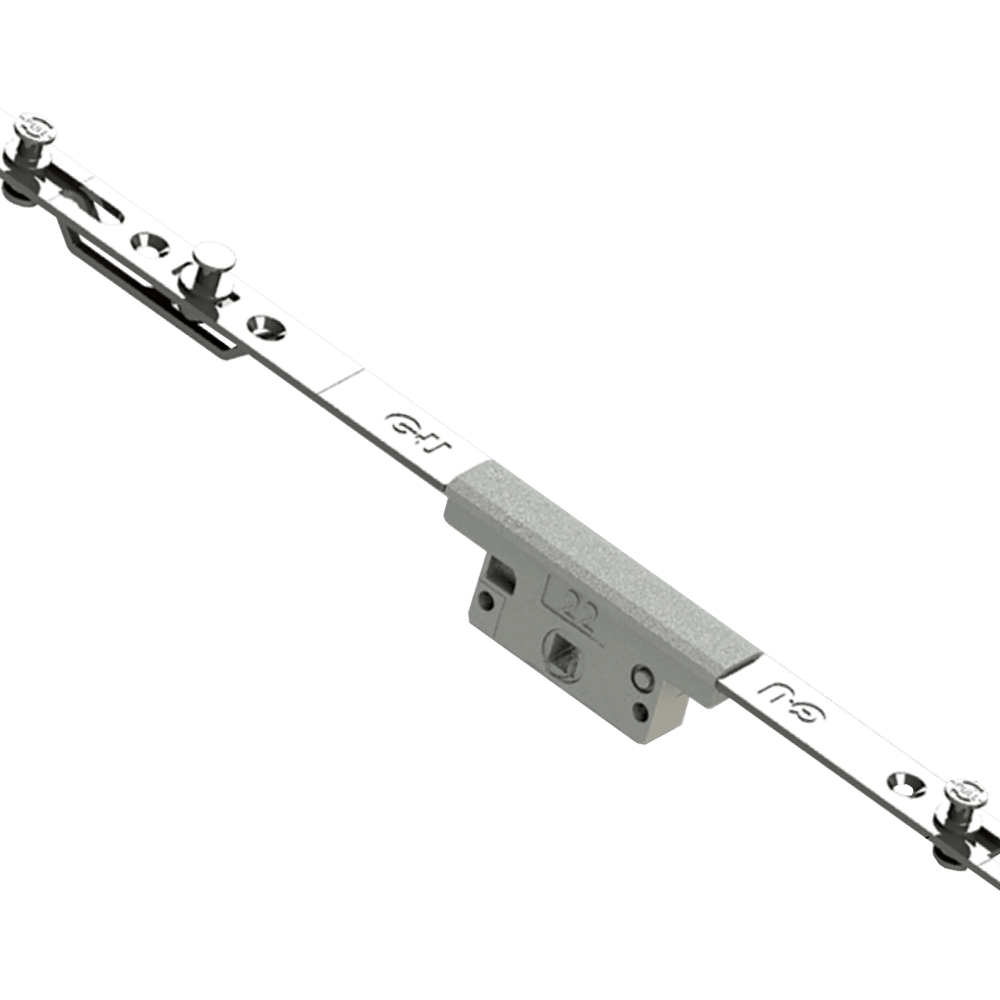

GU Espag Rod With Icam Technology 22mm – 1150mm
£11.87
- Croppable standard and twin cam espag rods reduces stock holding
- 7.7mm to 9.0mm unique adjustable cam reduces stock holding
- Strong steel carrier bar allows for free movement of cams
- Die-cast gearbox
- Simple pull action releases cam for ease of adjustment
- Manufacturing guides on faceplate
- Non-adjustable cam adds overall strength and security
14 in stock
Description
The GU SECURY casement locking system with ICAM technology offers flexibility to window system manufacturers and installers as it is both croppable and has cams that can adjust between 7.7mm and 9mm in depth. The protected ‘ICAM’ technology is designed to give auto-adjustment through a simple pull action, disengaging the cam upwards from its base position to allow for rotation to the desired adjustment position. The cam automatically relocates onto its uniquely designed base, resulting in exact clearance requirements between sash and frame without the need of tools or effort.
Additional information
| Weight | 0.5 kg |
|---|---|
| Boxed Quantity | |
| Cam Height | |
| Length | |
| Locking Point Mushroom | |
| Manufacturer Reference | |
| Notes | |
| Pack Quantity | |
| Spindle | |
| Weight |
