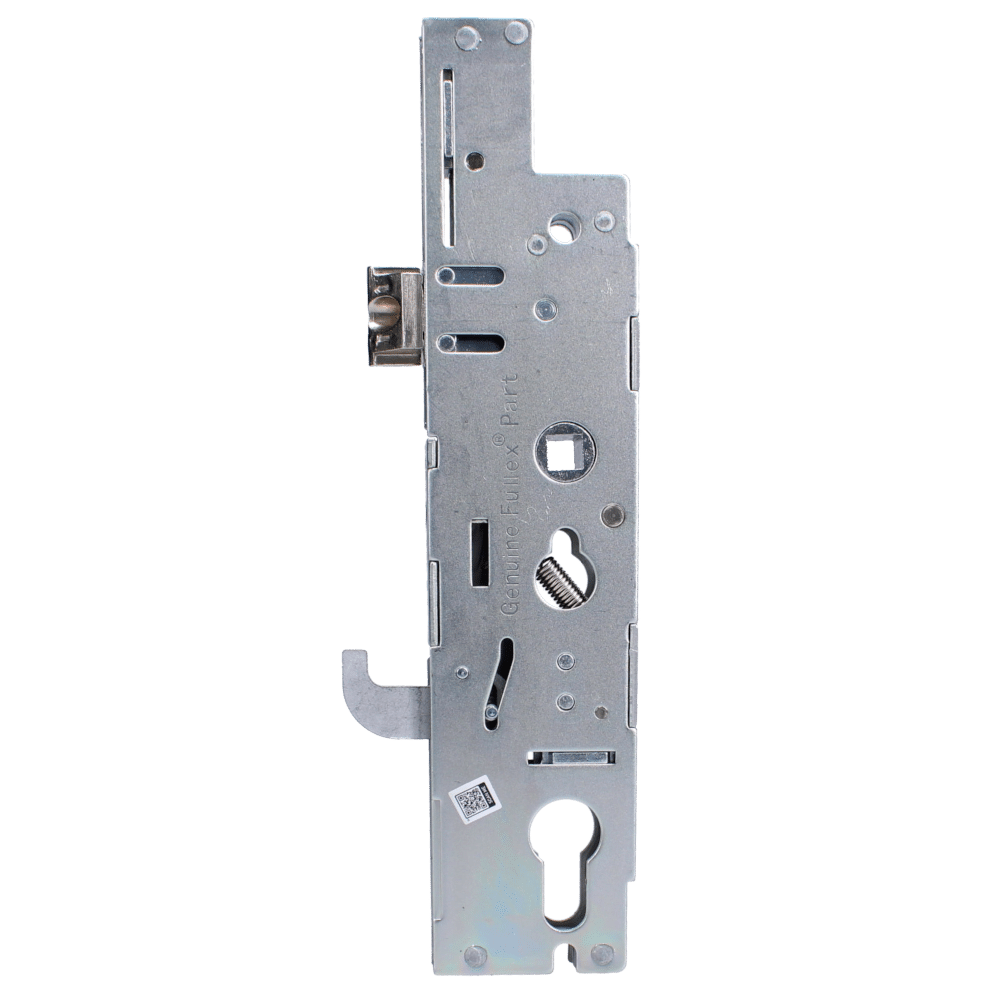

FULLEX XL Lever Operated Latch & Hookbolt Gearbox – 35/92

Description

The FULLEX XL Lever Operated Latch & Hookbolt Gearbox has a 35mm or 45mm backset with 92mm centres. It is a single spindle latch and hookbolt centre case with a 228mm case height and a 47mm or 57mm case width. The Fullex XL Gearbox features a lever operated latch and hookbolt mechanism, designed for use with Fullex XL multipoint locks on composite and timber doors. It offers a direct replacement for damaged gearboxes, restoring secure and smooth operation. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
