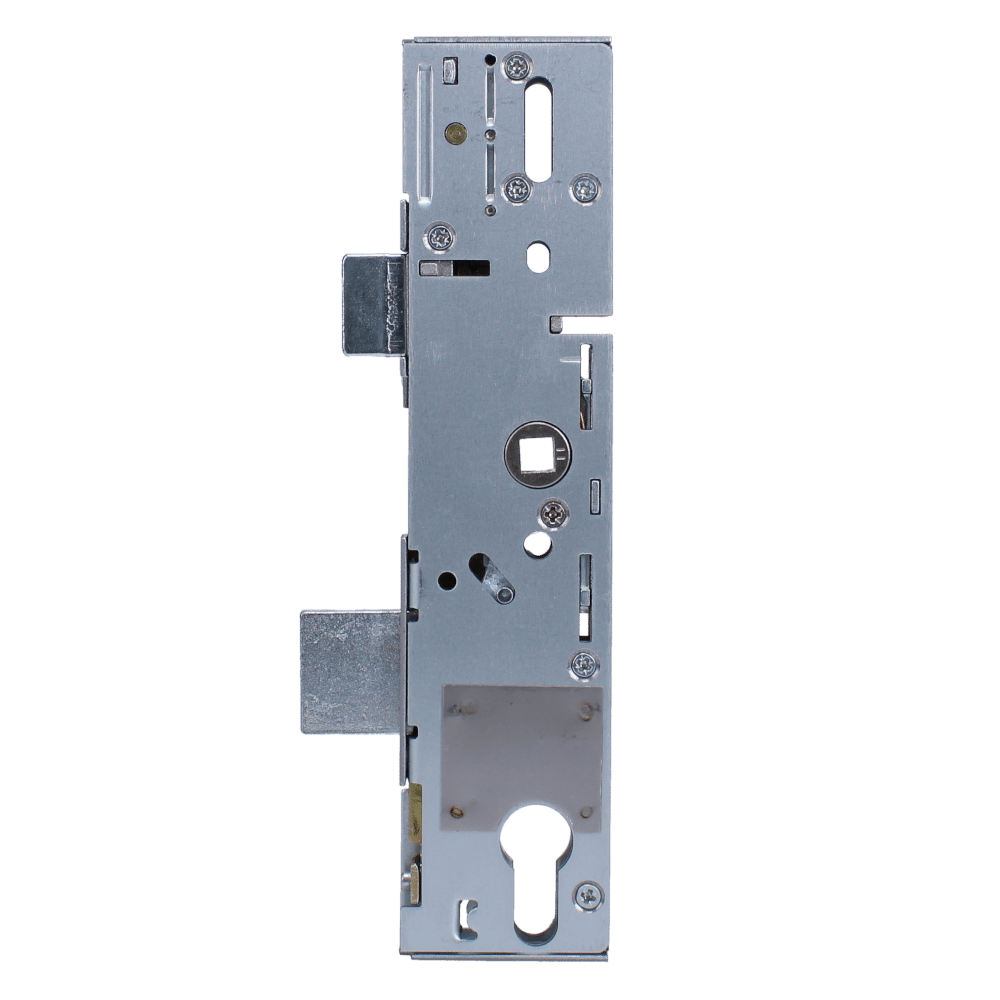

ERA Lever Operated Latch & Deadbolt Split Spindle – Centre Case – 35/92

Description

The ERA Lever Operated Latch & Deadbolt Split Spindle Centre Case has a 30mm, 35mm or 45mm backset with 92mm centres. It is a split spindle centre case with a 220mm case height and a 45mm, 50mm or 60mm case width. This ERA centre case features a latch and deadbolt configuration with a split spindle, making it suitable for lever and pad or lever and lever applications. It is designed for use with ERA multipoint locking systems, providing a direct replacement where only the gearbox has failed. HandingThe latch can be reversed by removing the screws in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
