ELITE Keywind Latch & Deadbolt Single Spindle Gearbox Only – 35mm Keywind Gearbox

Description

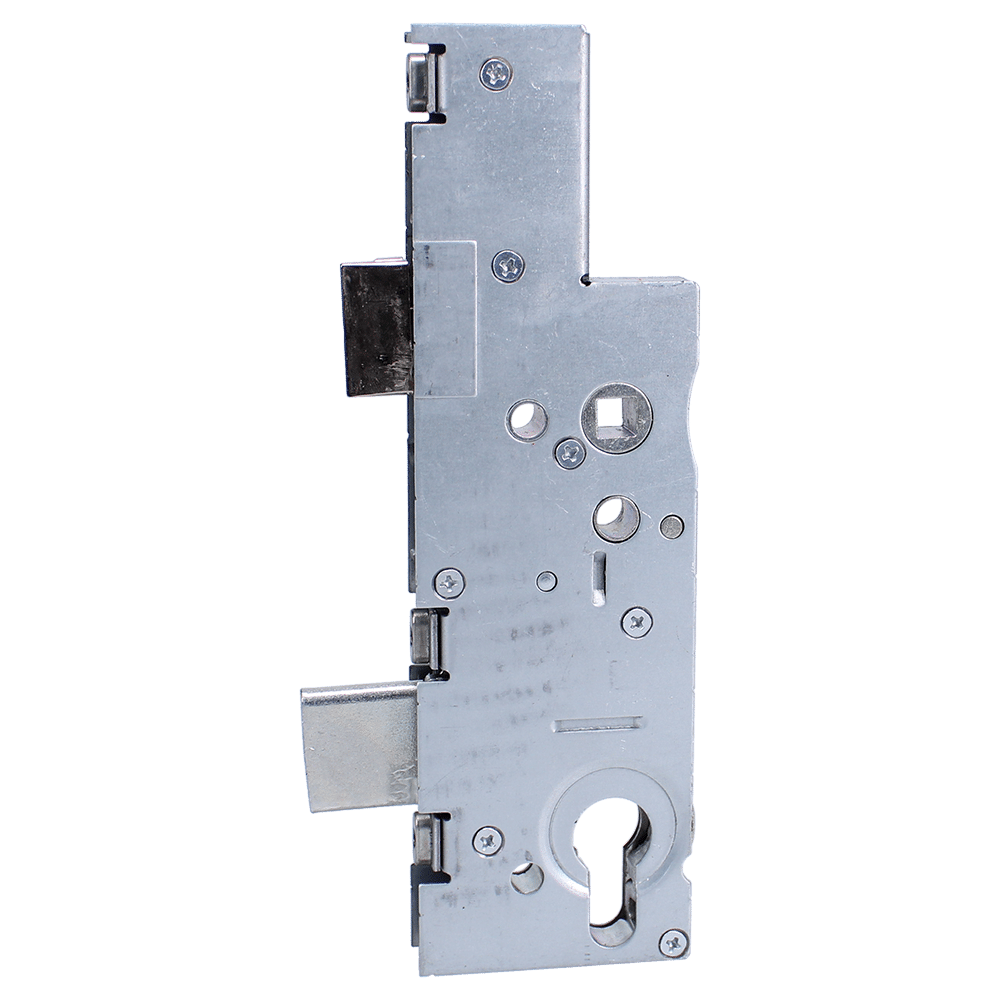

The ELITE Keywind Latch & Deadbolt Single Spindle Gearbox Only has a 35mm backset with 92mm centres. It is a single spindle centre case with a 200mm case height and a 54mm case width. The ELITE keywind single spindle centre case is a high-performance gearbox engineered for durability and precision and features a keywind deadbolt mechanism. The single spindle configuration offers compatibility with a wide range of handle sets. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – C: Two full turns of the key to lock, then two full turns of the key to unlock. An additional turn withdraws the latch.
