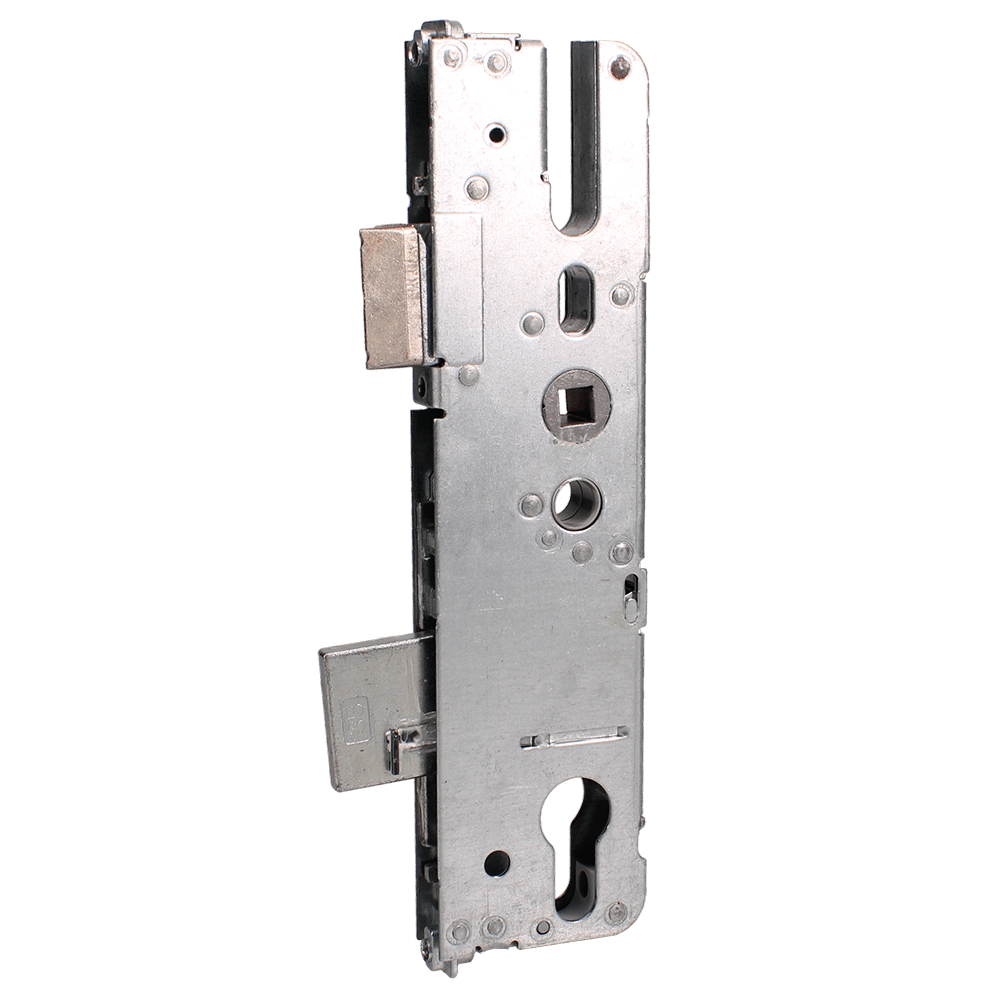

ELITE Auto Locking Latch & Deadbolt Single Spindle Gearbox Only – 35mm Gearbox

Description

The ELITE Auto Locking Latch & Deadbolt Single Spindle Gearbox Only has a 35mm or 45mm backset with 92mm centres. It is a single spindle centre case with a 200mm case height and a 54mm or 64mm case width. This ELITE centre case features an auto-locking latch and deadbolt configuration with a single spindle setup, designed to suit auto-locking Elite multipoint door systems. It is ideal for gearbox-only repairs on aluminium or composite doors where the full locking strip remains in place. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – E: The unit automatically locks when the door is closed and unlocks using the key or inside handle.
