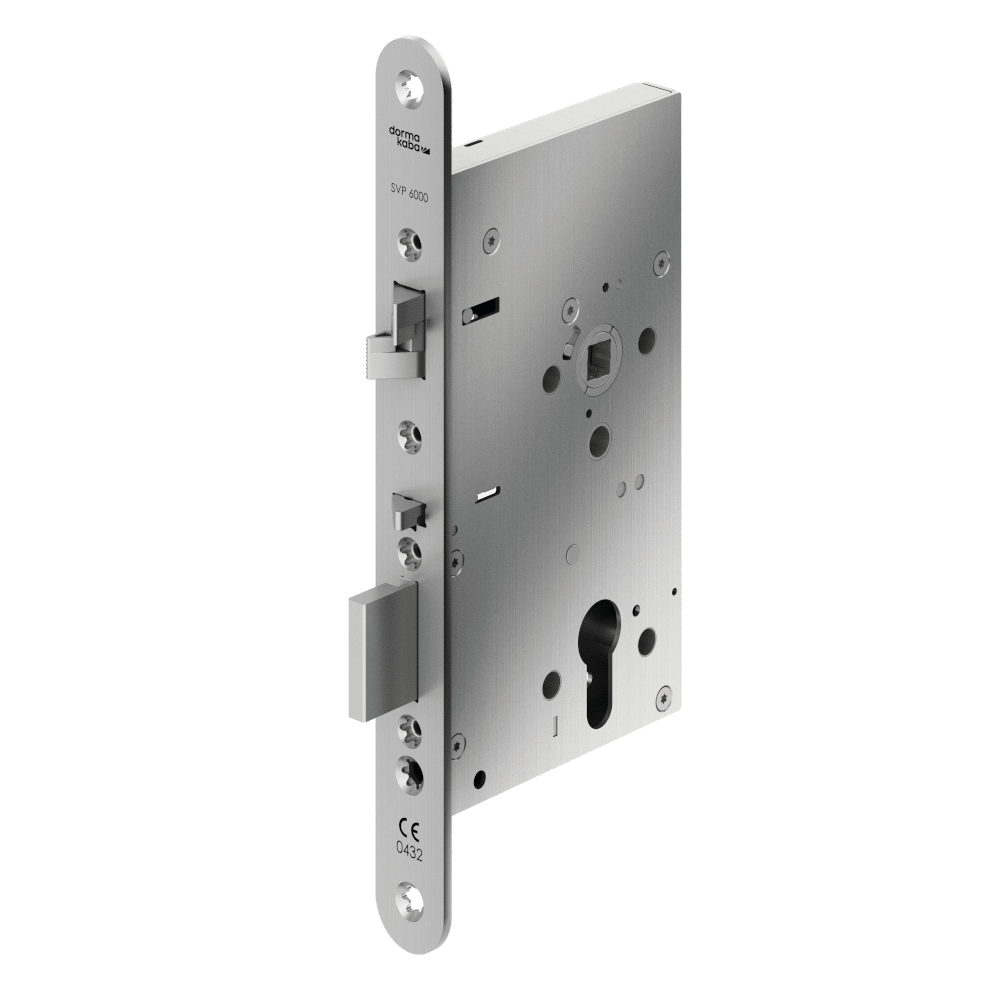

DORMAKABA Electric Lock SVP6278 12/24V DC FL/FU Outwards Din Right / Inwards Din Left – 70627800

£762.45

  • To suit non rebated single leaf timber doors
  • Steel bolt projection 20mm
  • Max load current 30 VDC, 100mA
  • Status monitoring
  • Split 9mm square section follower
  • Two point locking activated by pre-loaded spring when door closes
  • 72mm centres
  • Universal trip latch
  • Suitable for use on FD30 & FD60 fire doors
  • Certifire approved product

1 in stock

SKU: L32670 Categories: , , , Brand:

Description

The Dormakaba SVP6278 is a microswitch-monitored emergency-escape lock with automatic locking action, suitable for non rebated single leaf timber doors. It is electrically monitored, with split follower, optimised mechanical sequential control and status monitoring. The unit is Certifire approved and CE marked.

Additional information

Weight 1.12 kg
Body Depth

Body Height

Body Width

Centres

Faceplate Height

Faceplate Width

Finish

Input Voltage

Manufacturer Reference

Operation

Pack Quantity

Weight

Application
