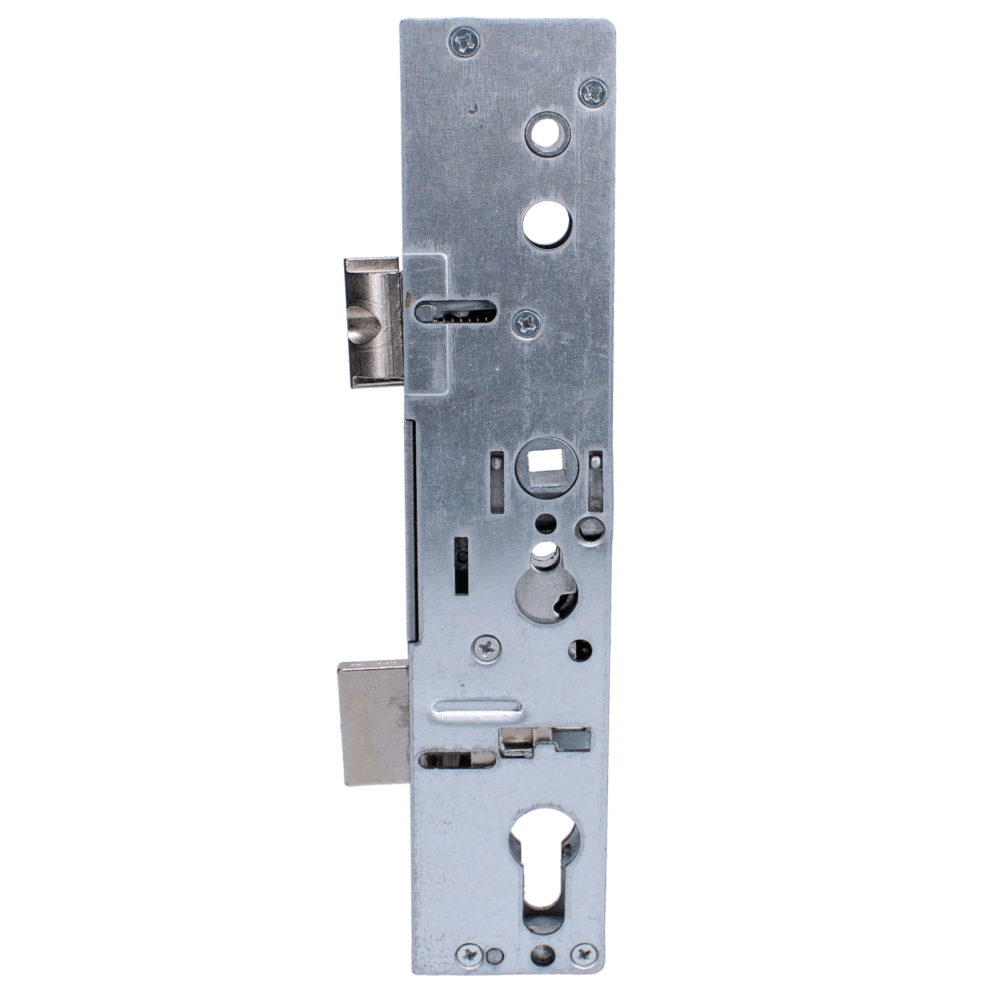

ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox – 35/92

Description

The ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox has a 35mm or 45mm backset with 92mm centres. It is a single spindle latch and deadbolt centre case with a 228mm case height and a 47mm or 57mm case width. This ASEC gearbox is a direct replacement for the Lockmaster latch and deadbolt centre case, designed for use on UPVC and composite doors with a single spindle setup and Euro profile compatibility. It is an ideal solution when the centre case gearbox is the only component that needs replacing within the locking mechanism. The gearbox is reversible and therefore suitable for both left handed and right handed applications. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
