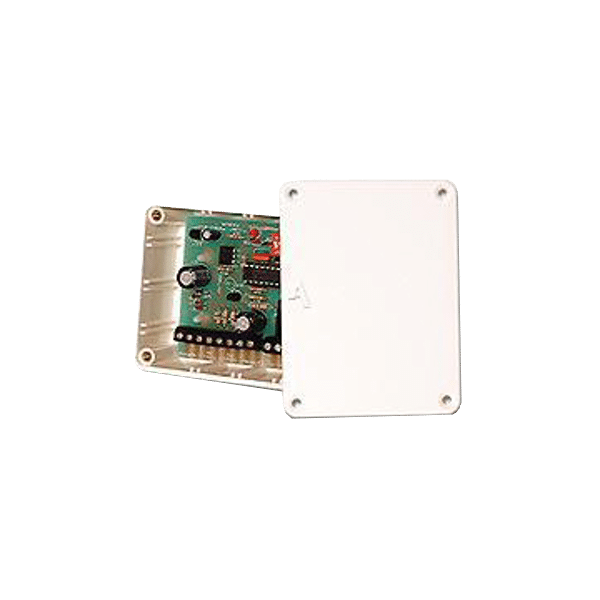

ASEC 12V/24V AC/DC Timer Relay – Boxed

£88.89

4 selectable time ranges
Toggle mode operation
Variable time ranges (potentiometer)
Latch or pulse operation
Ideal for controlling lock open times to magnets, electric strikes, etc
You can select delays of either 0-62 seconds or 0-62 minutes

10 in stock

SKU: AS8027 Categories: Access Control, Access Control Accessories, Other, Relay Brand: Asec

Description

Universal timer module.

Additional information

Weight	0.13 kg
Current Consumption	30mA at 12V DC
Depth	40mm
Input Voltage	12/24V AC/DC
Manufacturer Reference	AS8027
Notes	Boxed
Pack Quantity	1
Packaging	Boxed
Relay Rating	12/24V AC/DC (Double Pole) = 5 Amp
Time Delay	0 – 62 sec or 0 – 62 mins
Trigger Input	AC/DC trigger input NO/NC
Type	Box Mounted
Weight	130g
Width	77mm
